Product Performance
ZL-SIC silicon carbide foam ceramic filter has the characteristics of high strength, good thermal stability, large specific surface area and high dimensional accuracy. Mainly used for the filtration of ductile iron, gray iron, copper and other castings, effectively remove large inclusions in liquid metal, adsorption of fine Impurities, reduce the content of gases and harmful elements in liquid metal, improve the metal matrix structure, and improve the mechanical properties of castings.
1.reduces the waste rate of inclusion defects: inclusion defects by more than 60%
2. improves mechanical performance of castings: mechanical improvement by more than 10%
3. improves mechanical performance of castings: mechanical improvement by more than 10%
4. improves the casting process production rate: the process production rate increases by more than 10%
5. has a wide range of applicable processes and can be used on a large scale for the assembly line and single-piece manual modeling environment

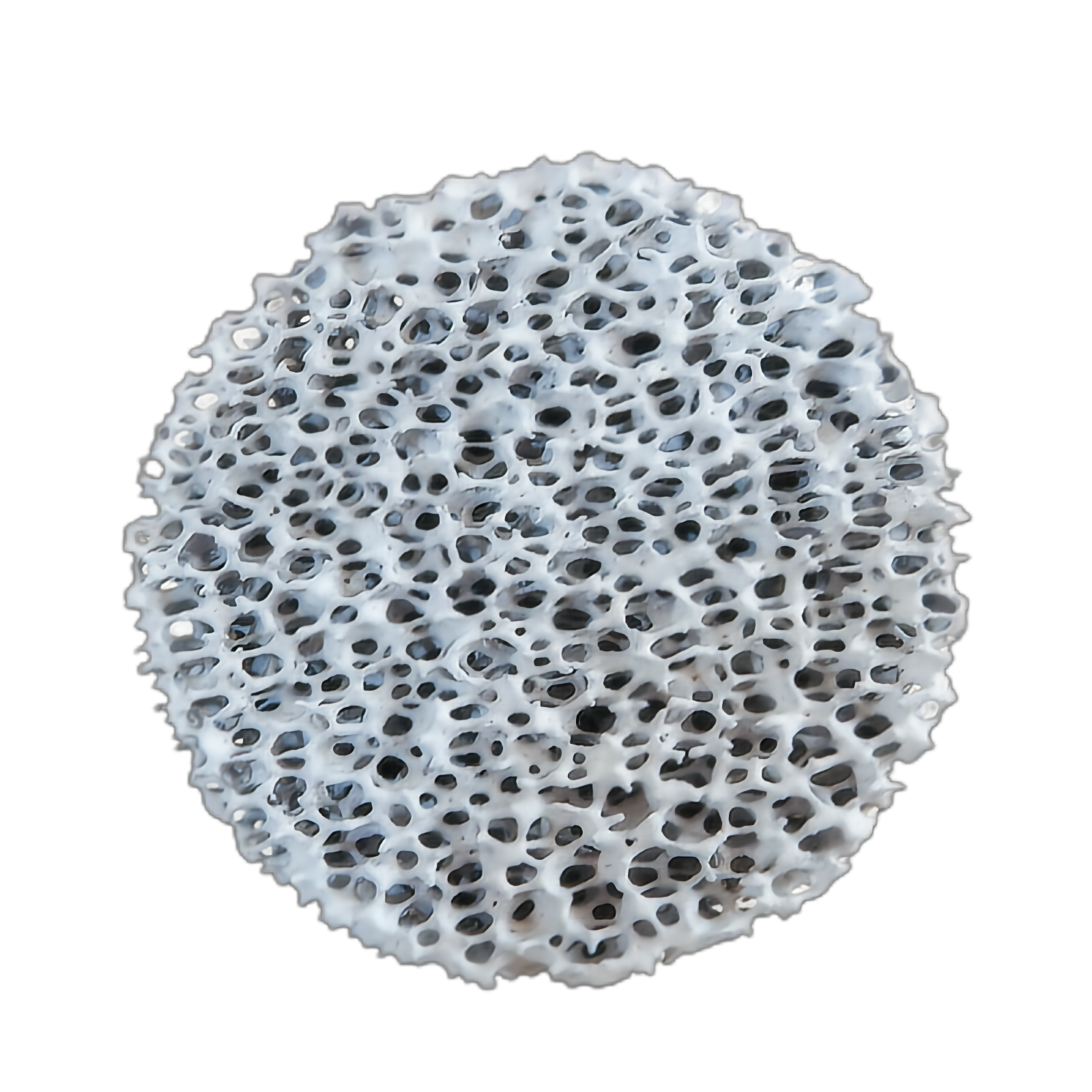

Silicon carbide ceramic foam filter
(1), handling and transportation, shock, moisture, light care to avoid extrusion and collision.
(2), is stored in dry and ventilated areas and is prohibited from rain and heavy pressure.
(3), product packaging: in carton, in the box, with pad between each layer. See the list for each box.
Packaging & Transportation
Size&Notes
1. must blow the dust with compressed air before using the silicon carbide foam filter.
2. uses a silicon carbide foam filter for pouring temperature not exceeding 1550℃.
3. Try to avoid the metal liquid from directly impacting the silicon carbide foam filter, and the pouring height should not exceed 350mm.
